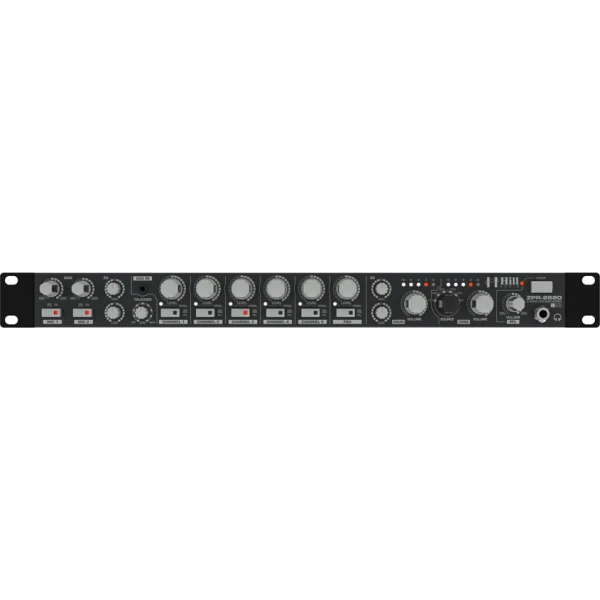

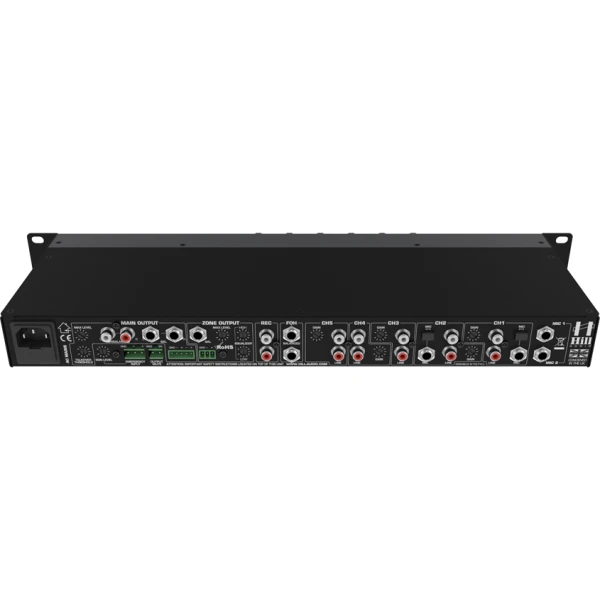

Hill Audio – ZPR-2620V2

Beschrijving

Specifications

• 6 stereo inputs with signal-present-LED, rear-panel gain and front-panel level control

• 2 stereo channels switchable to microphone

• 1 balanced stereo input (FOH input)

• Front panel 3.5mm stereo TRS input

• 2x Mic inputs with rear-side 1/4” TRS connectors

• 12V phantom power for microphones by internal jumper

• 2-Band EQ plus “on air” switches for mic inputs

• Adjustable auto talk-over for automatic music level reduction when microphone is used

• One stereo output zone and one mono output zone

• 5 LED level meter for every zone

• CascadeZone ©: Mono zone source selectable from Input 1-5 or stereo zone signal

• Rear-side adjustable maximum level control  for each zone

• Balanced XLR and Phoenix output connectors; stereo zone with additional unbalanced RCA connectors

• 2-Band master EQ (front-side for stereo zone, rear for mono zone)

• Emergency input which shuts down master output when emergency signal comes in and plays emergency signal instead

• Output mute contact to externally mute the output

• PFL section with volume control and front-side 6.3mm stereo jack

• Unbalanced record output

• All switches with LED status indicator

• Internal wide-voltage swing linear power supply for excellent audio dynamics

• Full metal case with detachable rack ears

• AC mains voltage selector switch 115/230V

• CE/ROHS compliant

• Signal/Noise ＞82dBu (unweighted 22Hz-22KHz)

• Crosstalk Damping ＞65dB

• THD ＜03%

• Frequency response 20Hz – 20 kHz

• AC supply 115/230V~ 50Hz-60Hz (20W)

• Dimension 483.0×44.5×152.0 mm WxHxD

• Weight 2.4 kg
